HoofJack Dental Attachment - Articulated

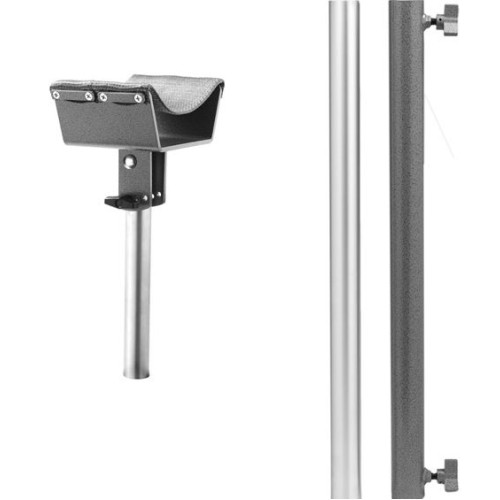

1. A) Stand B) Cradle and C) Green Base.
2.Take A (stand) and insert into B (cradle)
3. Put both A (stand) and B (Cradle) into C (green base).
4. After A (stand) and B (cradle) are inserted into C (green base) you will need to make a one time tension adjustment. Tighten the clamping mechanism tight enough so that when clamp is in the "locked" position it will hold part A (the stand) up without any slippage. Do this by pulling the clamp handle out straight (in a loose or "unlocked" position) then, while holding the left nut, turn the handle clockwise until you hit the desired tension (test by pulling the hoof stand (part A) up and lock clamp, making sure it is holding the stand up tightly). When you have found your desired tension, it will be one easy step to switch from stand to cradle and adjust the height of your stand or cradle.
